NX Multi-Mode Amplifiers are designed for your most demanding installations.
NX amplifiers are trust-worthy, power amplifiers that install and configure into virtually any architecture and sound environment.
What is Multi-Mode?
NX Amplifiers feature Selectable Outputs on each channel so you can connect to virtually any speaker. Select Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V).
Choose the model that fits your system design.
Start with a 2 or 4-channel nX Series base model and build your way up. Choose from 36 model configurations, available from 75 to 3000 Watts per channel.
The nXe Series adds Ethernet control, event scheduler, preset recall, AUX outputs and much more. Add factory options like Dante® or CobraNet® for network audio integration.
The nXp Series has all the features of nXe, adding Protea™ DSP and swept load impedance analysis.

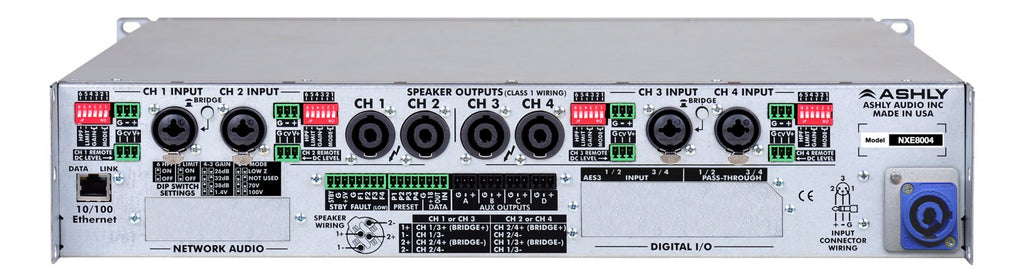

Below is an example of a fully-loaded NXP3.04 with Dante® .
■ Ethernet Control and monitoring of amplifier functions, with front panel COM activity LED
■ Serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1)
■ Use Protēa™ Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
■ Real-Time Clock with Event Scheduler
■ Instant Standby Mode 30% reduction in power consumption with on/off and Preset Recall, both via contact closure, software control, or event scheduler
■ Programmable power-on delay
■ Aux preamp outputs, and fault condition logic outputs
■ Optional Cobranet® or Dante® and AES3 digital audio input with pass thru
■ Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
■ Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
■ Switch mode power supply automatically detects 120V or 240V AC operation
■ Extensive protection circuitry
■ Continuously variable cooling fans
■ Front panel power switch and level controls (can be disabled for security)
■ Multiple internal power supplies provide increased channel separation and reliability
■ Remote DC level control on each input channel (2 RU models only)
■ Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
■ Safety / Compliance: cTUVus, CE, FCC, RoHS
